Save design costs = selling prices closer to the people? GALAXY GTX1050Ti Reviews

[PConline evaluation] 甫 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 拿 影 影 影Do you want to know why? You can then look down!

GALAXY GTX1050Ti General Reference price: Loading... Image reviews Overview of quotation parameters

Why do you say that? Concerned about the friends of our channel must know that the author earlier evaluation of a film and GALAXY GTX1050Ti generals like a video card, like and unlike you can go against the contrast, of course, this is a follow-up; today we mainly look at GALAXY GTX1050Ti generals, The same plastic shroud, the main color from red to blue, of course, the flow of the shroud and style is also slightly different.

The overall card size is 242mm x 126mm x 39mm. Based on the positioning of the product, this card also does not have a backplane.

A heat pipe is exposed, and the external power supply is 6Pin, which can meet the power consumption requirements while ensuring a higher frequency.

The video output interface is equipped with two DVI interfaces, one HDMI and one DP interface, which can basically meet the interface requirements of most users, and supports multi-screen output.

● GALAXY GTX1050Ti general parameters comparison:

GPU-Z screenshots

6 screws are fixed and it is easy to remove.

With the Falcon MAX radiator, the two 10cm fans each have 9 blades and the air flow is full.

Like a graphics card, a heat pipe plus aluminum fin and base design is used.

And, 3+1 phase power design.

PCB front

PCB back

Again, the PCB still maintains rigorous workmanship, and the onboard electronic components are still patchy and meticulous.

Code-named GO107-400-A1 core and 4 pieces of 1GB GDDR5 Samsung video memory, the memory bit width is 128bit.

● Test platform description:

● 3DMARK theoretical performance test:

Based on the positioning of the GTX1050Ti, we only tested the Time Spy and Extreme.

The theoretical test summary: The 3DMark run points are 2298 and 3544, respectively, and are higher in the non-public GTX1050Ti. The positioning is between GTX1050 and GTX1060 3G.

● Game performance measured:

In terms of games, we use the currently popular four games for testing, including "Tomb Raider 10", "Singularity Ashes", "Watching Pioneer" and "Blocking across the country."

Test summary: GALAXY GTX1050Ti will be able to run smoothly when many mainstream games in the 1080P high-effect settings, on the whole very much in line with the positioning of a thousand yuan dessert-level graphics card, is for the online game artifact.

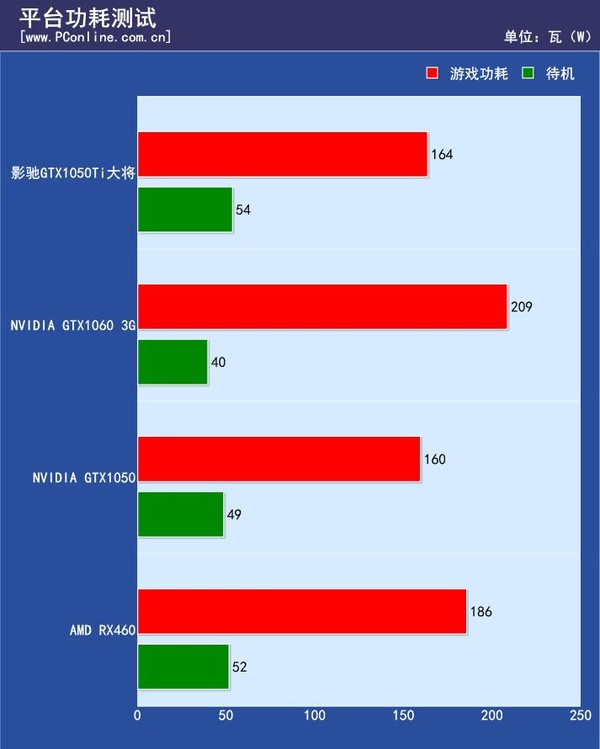

● Platform power consumption test:

In order to simulate the player's real use scene, and the graphics card is positioned as a low-power gaming video card, we will use the power consumption of the standby idle and full-loaded games to compare the power consumption of the graphics card with other graphics cards. .

Power consumption test summary: non-public version of high frequency plus external 6Pin power supply design can still control the power consumption within 200W, very good, a 300W power supply to meet the needs of a set of i3 + GTX1050Ti platform.

● Graphics temperature test:

Full load temperature (Click on image to enlarge)

Test summary: In the case of room temperature 24°C, the GAC GTX1050Ti player's copying temperature is 58°C, which is much better than many non-public GTX1050Ti, but there is also a part of the reason is the recent cold weather, our evaluation room room temperature has dropped to 24 °C, and cough.

● Card noise test:

Here we have a noise tester that tests the graphics card's fan noise when Furmark is fully loaded.

Test summary: Only 45.5 decibels when recording, it is an ordinary indoor conversation level. After installing into the chassis, the noise will be even smaller and will not cause noise interference to users.

About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.

● PConline graphics ladder diagram:

The ladder diagram shows: Based on the higher frequency and performance performance, we will put GALAXY GTX1050Ti on top of the GTX1050Ti.

●PConline evaluation room summary:

Although GALAXY GTX1050Ti is quite similar to a graphics card, this article also lists many similarities in the design of the two cards, but it does not say that such similarities are not good. Someone who presumably knows the graphics card market a little bit should know that GALAXY and a graphics card brand are one, and it is not necessary to save design costs on product design, because it is equivalent to only manpower and material resources for designing a solution. There are two products (you will do the same thing if you are PM, laugh ~).

Now only hope that manufacturers can set the price of their products better and better for the people at the same time while saving cost (the price is cheaper is really good for consumers), and at the same time it can also improve the competitiveness of their own products; after all, whether it is RX470 or just recently The price of the RX470D is a bit fierce!

1, 1354MHz high frequency, performance guaranteed
2, Falcon MAX radiator, pure copper heat pipe design, good temperature control
3, 3 + 1 phase power supply, meet GP107 requirements, and low power consumption
4, 4G large memory
5, even if it is fully loaded

1, 1299 yuan price is slightly higher
