PHICOMM Fiji k2 ASUS, Pandora, Phoenix's Ruijie Certification Course

V22.2.15.128 V22.3.15.232 V22.3.17.148

V22.4.2.8 V22.4.2.9

V22.4.5.39 V22.4.5.42

V22.4.6.3

V22.5.7.118 V22.5.9.163

1.2.1, download the attachment, after all the files are decompressed, double-click on the Brush/.bat folder in the Router/Tools/Brush folder and the IP address is 192.168.2.1. (You must have two network cables, one lan port and computer, one WAN port. Network port)

1.2.2 Waiting for the route to restart, one minute or so will use IE to automatically open the route page, if the automatic login successfully enters the home page (login password becomes tianbaoha) it means the brush breed is successful.

1.2.3 Then enter: Advanced Settings ---- System Settings ---- Manual Upgrade ---- Click to download backup EEPROM (is a compressed package), this is your route backup, please keep it.

2.1.1 Unplug the power, press and hold the reset key, plug in the power 5s release, enter 192.168.1.1 in the browser, enter the breath. (figure 1)

(figure 1)

2.1.2 Click Firmware Update, click Firmware > Select File, select the ASUS folder trx file in the attachment, click Upload, Update, wait for the progress bar to finish, and wait a few minutes.

2.1.3 Enter 192.168.123.1 in the browser. The username and password are both admin. Enter the ASUS firmware background (Figure 2).

(figure 2)

2.1.4 Entering Extended Functions> Configuration Expansion Environment> Ruijie Certification. Since the school is not strict, our version number can be very low, 3.95 is OK, 8021.x and mac binding are not used so I did not get it (I Nor will it). The only things that need to be changed are user name, password, multicast mode (1 Ruijie), DHCP mode (0 not used), background running (2 is reserved output), and client version number (3.95). You set up according to your school network. Click Apply this page to set up.

(Figure 3, Figure 4)

(image 3)

(Figure 4)

2.1.5 Then click Advanced Settings > External Network to configure Broadband. I was pppop dial-up Internet access, select the type of external network connection pppop, and then enter the user name and broadband password, after the application can access the Internet. Other adbyby, multicast solve themselves.

2.2.1 Entering the Breed Pull out the routing power, hold down the reset key, and release the reset key after plugging in the power for 5 seconds. In the browser enter 192.168.1.1 to enter the breed.

2.2.2 Click Firmware Update> Firmware> Select File, select the bin file in the attachment, click Upload> Update, wait for the progress bar to complete, and wait for 2 minutes. (Figure 5)

(Figure 5)

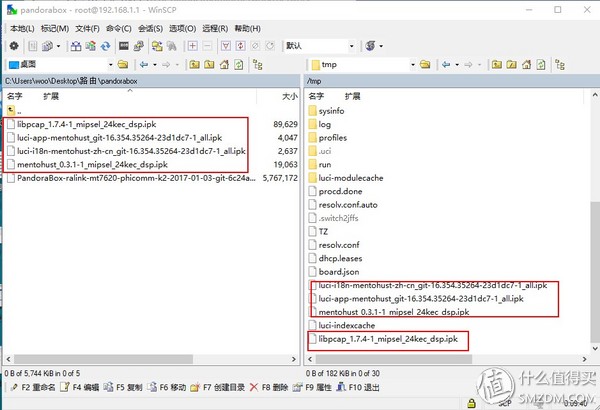

2.2.3 Open the tool folder in the download attachment, open winscp, select .1.1 (Figure 6), and log in. Click Update, OK. Go to the root directory (Figure 7). Copy the ipk file from the pandorabox folder in the download attachment to the root/tmp folder (Fig. 8). Press CTRL+T in winscp to bring up the console and enter it in order:

Opkg install libpcap_1.7.4-1_mipsel_24kec_dsp.ipk

Opkg install mentohust_0.3.1-1_mipsel_24kec_dsp.ipk

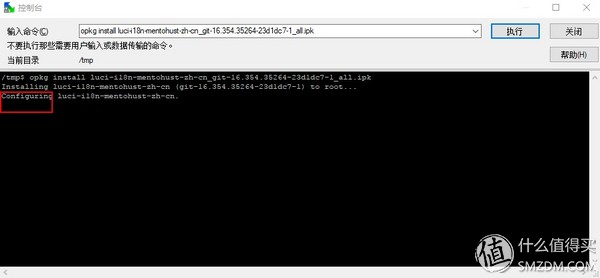

Opkg install luci-i18n-mentohust-zh-cn_git-16.354.35264-23d1dc7-1_all.ipk; (winscp must open the tmp folder when entering commands) (The third command will usually fail, by typing opkg --force -depends --force-overwrite install /tmp/luci-i18n-mentohust-en-git-16.354.35264-23d1dc7-1_all.ipk, opkg --force-depends --force-overwrite install /tmp/luci-app- Mentohust_git-16.354.35264-23d1dc7-1_all.ipk, opkg install luci-i18n-mentohust-zh-cn_git-16.354.35264-23d1dc7-1_all.ipk, plug and plug network cable, power supply and other operations to achieve the installation. Ensure tmp folder There are luci-app-mentohust_git-16.354.35264-23d1dc7-1_all.ipk, luci-i18n-mentohust-zh-cn-git-16.354.35264-23d1dc7-1_all.ipk these two files before entering the command.) (if anyone Can tell me what's going on, I'm grateful to you, Configuring when the program is successfully installed (Figure 9)

(Figure 6)

(Figure 7)

(Figure 8)

Figure 9

2.2.4 In the browser, enter 192.168.1.1, enter username as root, and password as admin. Go to pandorabox and click Service> Ruijie Certification. As shown in Figure 10, 11 settings. (This is my school's configuration. You can use mentohusttool to capture packets and determine what configuration you are using.) Click Save.

Let's click on Network> Interface> WAN Modify to configure the broadband. Select pppop for the protocol and click Switch Protocol. Enter the broadband user name and password. (Figure 12) You can go online.

Figure 10

Figure 11

Figure 12

2.3.1 The steps of brushing the immortal bird are the same as before, except that the brush must be restored to the factory settings before the brush can be successfully created. The login ip is 192.168.1.1, the user name is root, and the password is tomato.org.cn.

2.3.2 Use a network cable to connect the router and computer, modify the mentohust.conf configuration file (mentohust.conf file is your Ruijie configuration file, you need to modify it yourself. If you do not know, you can use mentohusttool to capture packets. When you modify, Do not fill in account name and password). Open Folder Routing > Phoenix, run FTP Server, click Start (Figure 13)

Figure 13

2.3.3 run puttytl, open, login, user name root, password tomato.org.cn (do not display when entering the password, blind enter return can be)

2.3.4 Run the school Rui script to modify, point to start, will automatically generate a key command

2.3.5 Back to ptttytl, right-paste a key command, enter, enter the account password as prompted, and then enter the 192.168.1.1 configure broadband account, you can access the Internet (note that the above operating computer can not connect to WiFi)

Figure 14
